BASIC EXECUTION ENVIRONMENT
As the IA-32 Architecture has evolved, flags have been added to the EFLAGS register, but the function and place-
ment of existing flags have remained the same from one family of the IA-32 processors to the next. As a result,
code that accesses or modifies these flags for one family of IA-32 processors works as expected when run on later
families of processors.
3.4.3.1
Status Flags
The status flags (bits 0, 2, 4, 6, 7, and 11) of the EFLAGS register indicate the results of arithmetic instructions,
such as the ADD, SUB, MUL, and DIV instructions. The status flag functions are:
CF (bit 0)
Carry flag — Set if an arithmetic operation generates a carry or a borrow out of the most-
significant bit of the result; cleared otherwise. This flag indicates an overflow condition for
unsigned-integer arithmetic. It is also used in multiple-precision arithmetic.
PF (bit 2)
Parity flag — Set if the least-significant byte of the result contains an even number of 1 bits;
cleared otherwise.
AF (bit 4)
Auxiliary Carry flag — Set if an arithmetic operation generates a carry or a borrow out of bit
3 of the result; cleared otherwise. This flag is used in binary-coded decimal (BCD) arithmetic.
ZF (bit 6)
Zero flag — Set if the result is zero; cleared otherwise.
SF (bit 7)
Sign flag — Set equal to the most-significant bit of the result, which is the sign bit of a signed
integer. (0 indicates a positive value and 1 indicates a negative value.)
OF (bit 11)
Overflow flag — Set if the integer result is too large a positive number or too small a negative
number (excluding the sign-bit) to fit in the destination operand; cleared otherwise. This flag
indicates an overflow condition for signed-integer (two’s complement) arithmetic.
Of these status flags, only the CF flag can be modified directly, using the STC, CLC, and CMC instructions. Also the
bit instructions (BT, BTS, BTR, and BTC) copy a specified bit into the CF flag.

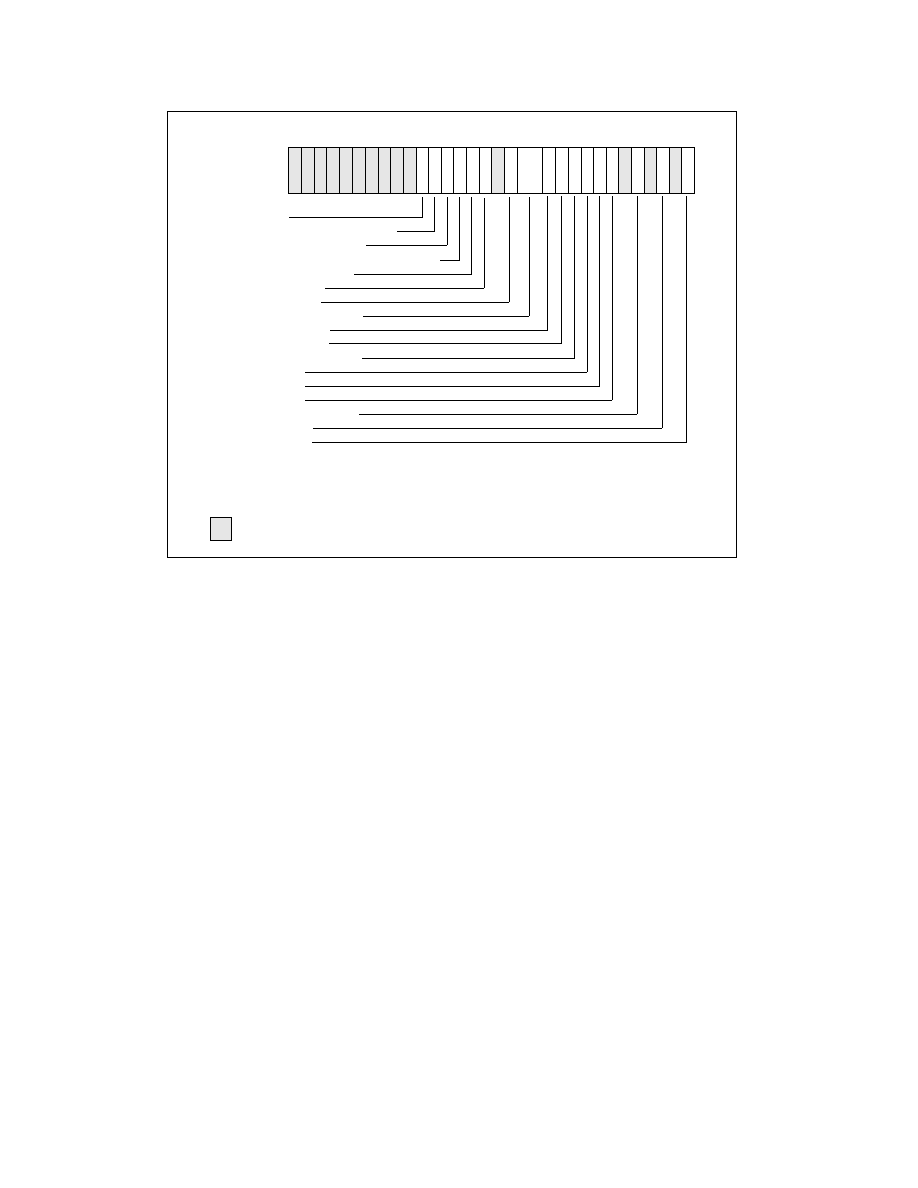

Figure 3-8. EFLAGS Register
31
29
30
28 27 26 25 24 23 22 21 20 19 18 17 16
0
R
F
I
D
A
C
V
M
X Virtual-8086 Mode (VM)
X Resume Flag (RF)
X Nested Task (NT)
X I/O Privilege Level (IOPL)
S Overflow Flag (OF)
C Direction Flag (DF)
X Interrupt Enable Flag (IF)
X Alignment Check / Access Control (AC)
X
ID Flag (ID)
X
Virtual Interrupt Pending (VIP)
15
13
14
12 11 10 9 8 7 6 5 4 3 2 1 0
0
C
F
A
F
P
F 1
D
F
I
F
T
F
S
F
Z
F
N
T
0
0
0 0 0 0 0 0 0 0 0
V
I
P
V
I
F
O
F
I
O
P
L
X Virtual Interrupt Flag (VIF)
X Trap Flag (TF)
S Sign Flag (SF)
S Zero Flag (ZF)
S Auxiliary Carry Flag (AF)
S Parity Flag (PF)
S Carry Flag (CF)
S Indicates a Status Flag
C Indicates a Control Flag
X Indicates a System Flag
Reserved bit positions. DO NOT USE.
Always set to values previously read.
